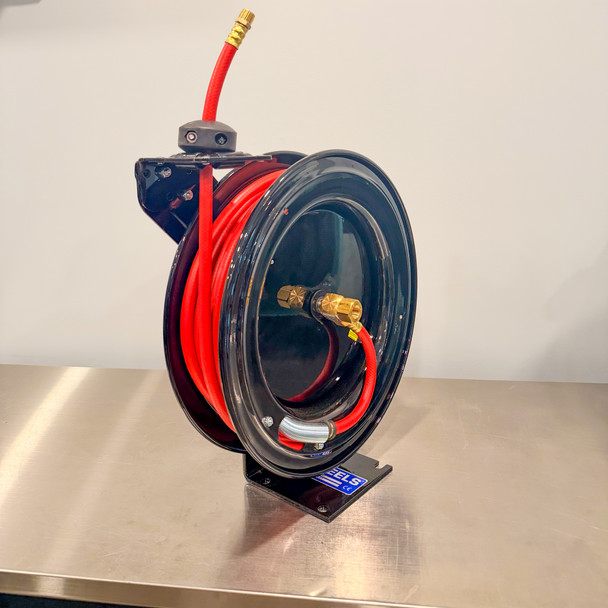

Cox Retractable Air Hose Reel Custom Black | Loaded 3/8" Air Hose 50'

By customer demand we are now offering these reels loaded with a 50' air hose from COX.

This is a custom part number setup by COX in a custom black finish and with the part number plate moved.

Cox installs a 50' 3/8" red air hose on the reel with a hose reel stop.

Please Review The Following Important Notes on These Reels:

• This reel and hose are for compressed air. They CAN NOT be used with pressure washers. We offer a bare retractable reel in the same finish with the correct seals for water under part number P-LPL-350-KEX.
• These are not EZ Coil reels. We have transitioned away from the EZ Coil Reels and back to the standard version, the EZ coil version retracts VERY slow and is more sensitive to the weight of the hose. We have the standard version works better for pressure washer hose and is less expensive.

If the listing shows "Add to Cart" these are in stock and ready to ship from here, we do not make you wait for your order to be made and drop shipped like most other sellers. If it says pre-order we are waiting for more stock and an estimated ship date from here is listed.

The inlet of this reel is 3/8" NPT Female thread.

Your jumper/inlet hose should both have a 3/8" threaded male end.

COXREELS® P Series “Performance” spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.

• Design & Structure
• Sturdy single pedestal reel with space saving design facilitates workplace organization.
• Guide arm adjusts to wall, floor, vehicle & overhead positions.
• Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
• 1" solid steel axle and lubricated precision bearings for smooth rotation.

• Signature Features
• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

OVERALL DIMENSIONS 6.75"(W) 18.63"(H) 17.13"(L)

MOUNTING PATTERN (M) (N) 4"(M) 5"(N)

BASE (X) (Y)  6"(X) 6"(Y)

Warranty Information and Technical Support Contact:

It is important you understand before purchasing a reel or tool the warranty is facilitated by the the manufacturer, which is in this case is COX REELS.

Any technical issues, warranty returns or exchanges will be facilitated directly with the manufacturer.

The Clean Garage will be happy to assist you in making contact with them and anything else within our power to make the process smooth for you should an issue arise.

We suggest reviewing the manufacturers full warranty policy before purchase which can be found here: COX REELS WARRANTY
