Active Hose Reel and Wall Mount System | Pressure Washer Shelf and Reel Solution

The long awaited Hose Reel Wall Mount System is now available for pre-order to ship from TCG the first week of September.

Please make sure you review the details we have listed below on what is included with this sytstem and what is not. This system DOES NOT include a pressure washer or any accessories. It is basically a wall mount shelf/cage, a hose reel and a jumper hose.

Please note due to the size, weight, limited availibility and custom nature of how this item is used we WILL NOT accept returns on it. We list all of the information you need below to make an informed purchase decision and the parts are covered under warranty by Active.

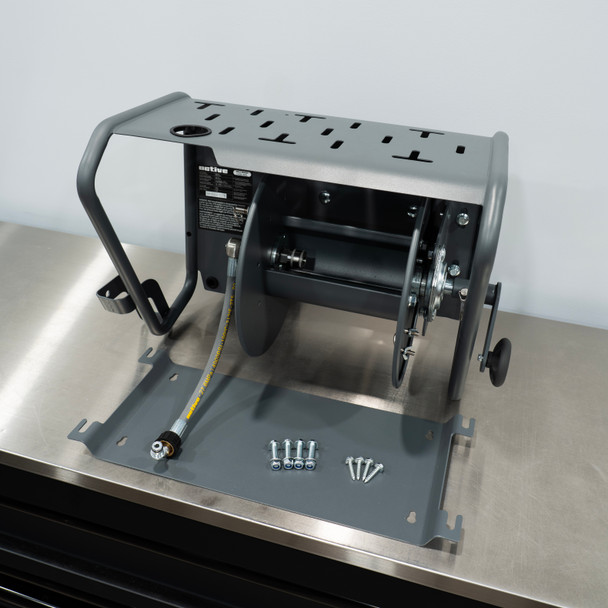

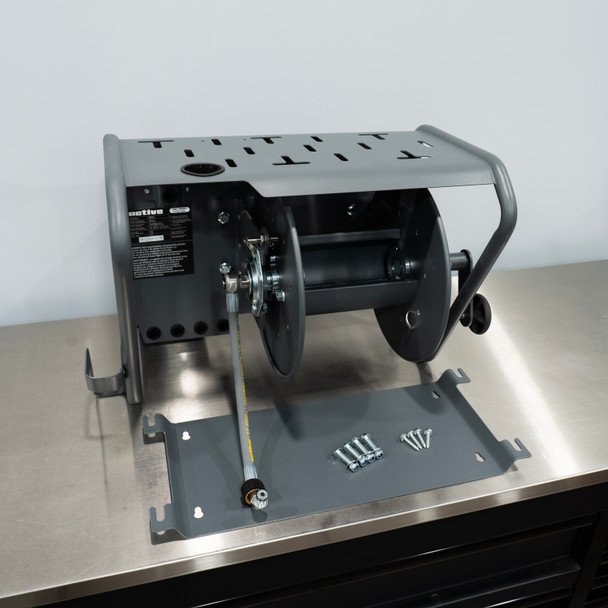

Active's new wall mount and reel system includes the following:

• A wall mount cage/shelf desigend for mounting to 16" spaced studs
• A hose reel that will hold up to 100' of 5/8" external diameter hose
  • The connection point for your pressure washer hose is a 3/8" QC coupler, so you will need a hose with a 3/8" plug like the active hose.
  • The main pressure washer hose is NOT included
• A jumper hose to connect the reel to you pressure washer. This includes a nice 90 degree M22 14mm connection.
  • We suggest connecting this right to your pump outlet, there is no reason to mess with trying to add quick connects or other parts
• Storage provisions for the following accesories (accessories are sold separetely)
  • Side Holster for Short Gun
  • 1/4" Rubber Grommet for Foam Cannon (must have a 1/4" plug)
  • 1/4" Rubber Frommets for 4 Rinse Nozzles
  • 1/4" Rubber Frommet for Wand (must have a 1/4" plug)

What Pressure Washers Will It Work With:

• ACTIVE 2.3 PRESSURE WASHER
  • The latest version was designed to mount to this new shelf system. If you have the previous version you will have to remove the cage.
• ACTIVE 2.0 PRESSURE WASHER
  • The 2.0 does not have provisions to secure it to a shelf, many of our customers use a zip tie attached to the top handle combined with a wall anchor.
• Other Pressure Washers with an M22 14mm pump outlet and appropriate footprint for the shelf
  • You will need to verify this on your own and understand you may need to do some customizing such as adding mounting holes. With the amount of pressure washers on the market we can not and will not verify fitment for you.
  • If you pressure washer DOES NOT have an M22 14mm pump outlet we would not suggest trying to use this kit, if you do so you will need adapters for the jumper hose and will be on your own to figure that out.

What Accessories Will It Work With:

• Obviously Active designed this unit to work with their upgraded Short Gun, Foam Cannon, Hose and Wand
  • We offer those all individually and a complete kit with all of them here: ACTIVE BRAND PAGE
• In theory most Short Guns, Foam Cannons with 1/4" Plugs, Wands with with 1/4" plugs, Nozzles with 1/4" plugs and Hoses with 3/8" Plugs should work with this system.
  • Again: we can not and will not be able to verify the exact fitment for all of your accessories due to the number of them currently available on the market.
• If you are buying one of our Kobrajet Hoses you should do so with a Coupler ON ONE END only and then purchase a 3/8" (female) Plug to put on the other end of the hose. Like this one.

Factory Information From Active:

• COLD WATER SUPPLY 5 Degrees C ~ 40 Degrees C Tap Water, 35 PSI ~100PSI
• PEAK PRESSURE 3000 PSI
• WORKING PRESSURE 2100 PSI
• FLOW RATE 3.5 GPM
• WEIGHT CAPACITY 40 KG/ 88 LBS FOR PRESSURE WASHER
• BACKING PLATE Included backing plate with 16mm stud spacing
• FOAM CANNON 1/4" rubber grommet for foam cannon storage
• GUN Holster for gun storage
• LANCE 1/4" rubber grommet for lance storage
• TIPS 1/4" rubber grommet for nozzle storage (x4)
• JUMPER HOSE 340mm 5/16 Rubber hose
• PRESSURE HOSE Up to 100' 5⁄8 external diameter hose (100' 3/8 and 100' 5/16 ID)
• FRAME Powder coated carbon steel
• VALVES 304 Stainless steel
• GROSS WEIGHT 46 Lbs.

Please note due to the size, weight, limited availibility and custom nature of how this item is used we WILL NOT accept returns on it. We list all of the information you need below to make an informed purchase decision and the parts are covered under warranty by Active.

Warranty Information

View and Register Online at www.activeproducts.com
