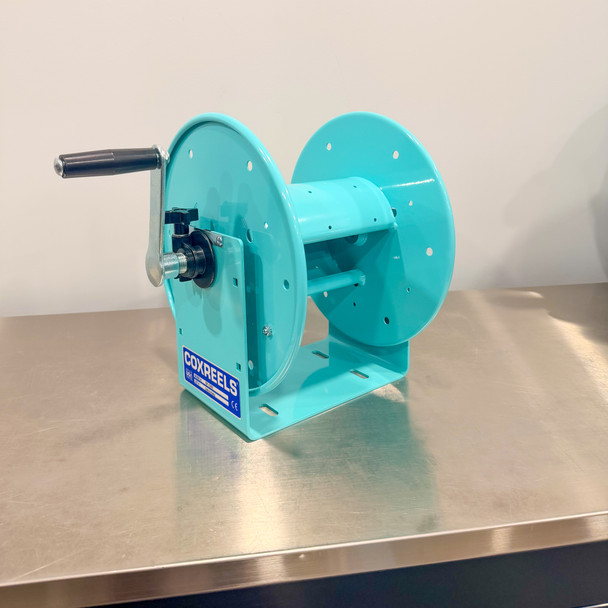

Cox High Pressure Hose Reel | Custom Mint Green | Hand Crank

Please Review The Following Important Notes on These Reels:

• We have these reels custom built for us by Cox Reels. They are powdercoated in RAL6027 which is the closest available color to our signature Mint Green color.
• These are industrial reels, they do a great job powdercoating them but for our overly particular shoppers you should expect some minor imperfections in the powdercoat finish like you would with any hose reel
• Due to the limited numbers of these custom finished reels we are stocking they are not eligible for return
• These reels will work with our stainless cox mounting bracket

Please review this complete listing for extensive details on how we suggest setting up these reels that should answer any questions you may have

We have these reels custom built in the USA by Cox Reels, with upgraded EPDM seals which are ideal for both cold and hot water pressure washers.

If the listing shows "Add to Cart" these are in stock and ready to ship from here, we do not make you wait for your order to be made and drop shipped like most other sellers. If it says pre-order we are waiting for more stock and an estimated ship date from here is listed.

This reel will accept any of the 50' 75' or 100' 3/8" high pressure hose we sell

Please note 100' is the maximum hose length for this reel - so if you use a 100' Hose it will take up most of or all of the reel when wound tight.

Optional: Add one of our stainless wall mount brackets above, complete details can be found here: The Clean Garage Stainless Steel Cox Pressure Washer Hose Reel Mounting Bracket

The inlet and outlet of this reel are both 3/8" NPT Female thread

We now offer a complete kit with hoses and fittings here: Cox Custom Pressure Washer Hose Reel Kit | BLUE | Choose Hose Color and Length

Here is how we typically suggest setting these reels up and connecting your hoses:

• Run your 3/8" jumper hose to the reel inlet/swivel. Put 3-4 wraps of teflon tape on the jumper hose threads.
• We offer KobraJet jumper hoses in various lengths here: Jumper Hoses/Whip Lines
• We suggest ordering your jumper hose with the coupler on one end option
• The bare 3/8" male end of your jumper hose should be connected to the reel inlet
• The end of your jumper hose with the 3/8" coupler will connect to your pump outlet by adding a 3/8" plug adapter
• This will only work if your pump outlet is a standard M22 14mm or M22 15mm and you have the right pumper adapter
• MTM M22 14MM Female Twist Coupler X 3/8" QC Plug | Stainless Steel
• MTM M22 15MM Female Twist Coupler X 3/8" QC Plug | Stainless Steel
• Run your main 3/8" high pressure hose to the connection inside the drum of the reel. Put 3-4 wraps of teflon tape on the hose threads.
• We offer KobraJet high pressure hoses here: Hoses - High Pressure
• We suggest ordering your hose with the coupler on one end option
• The bare 3/8" male end of your hose should be connected to the reel outlet
• The end of your hose with the 3/8" coupler will then connect to any spray gun we offer with a 3/8" plug installed

Coxreels^® 100 Series hand crank hose reels are lightweight, compact, versatile reels that perform at working pressures up to 4,000 PSI. Save time and effort while increasing the safety of your work environment. The sturdy "U" shaped frame and all steel construction this one tough little reel. All listed models are supplied less hose. Stainless steel models are available.

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• "U" SHAPED FRAME DESIGN - Solid one piece heavy gauge all steel "U" shaped frame. Professional grade, compact, lightweight and simple design.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
• STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.
• DIMENSIONS: 18.25"(W) 13"(H) 12"(L)
• MAX PSI: 4000

Warranty Information and Technical Support Contact:

It is important you understand before purchasing a reel or tool the warranty is facilitated by the the manufacturer, which is in this case is COX REELS.

Any technical issues, warranty returns or exchanges will be facilitated directly with the manufacturer.

The Clean Garage will be happy to assist you in making contact with them and anything else within our power to make the process smooth for you should an issue arise.

We suggest reviewing the manufacturers full warranty policy before purchase which can be found here: COX REELS WARRANTY
