AR Blue Clean AR630TSS-HOT | AR630 Hot Water Pressure Washer Total Stop | The Clean Garage

Availability: If the product page currently shows ADD TO CART this unit is in stock here ready to ship. If it says PRE-ORDER we are out of stock on this unit and are showing the best estimate we currently have for when a new order placed today would ship to you. These units have been very hard to get over the past 2 years, by doing our best to keep a large stock on hand TCG has been able to fill customers orders much quicker than competitors who rely on AR to "drop-ship" their orders.

This unit has upgraded HOT seals and o-rings capable of inlet temp. up to 180º – Factory-installed option. Note: HOT models DO NOT create hot water.

Please note this unit requires 20 AMP electric.

Please also note this unit has a distressed finish on the gray part as pictured. This is how they come from AR (it is an industrial pressure washer) We will not except exchanges on this unit because of this finish, they are all the same.

We purchase this as a bare unit so it does not include the typical entry level hose and wand. Just the pressure washer unit as pictured.

We include a Garden Hose adapter for the inlet to attach any standard garden hose. You can also add on our MTM Garden Hose Quick Connects if you want your inlet hose to Quick Connect.

Looking for the standard cold water version? Check it out here: AR Blue Clean AR630TSS Pressure Washer | 2.1 GPM Total Stop

Looking for a complete detailing package?

Checkout all of our AR630TSS Hot Water Packages Here

Piecing your own detailing package together? Here is what The Clean Garage Suggests:

• Rinse Nozzles:
• Optimal Choice: 5.0 Orifice (maximum GPM for car washing)
• For Higher PSI: 4.0 Orifice (not optimal for washing cars)
• Foam Cannon:
• 1.25mm orifice should be used (do not use a 1.1 orifice as you will over work the pump and increase electrical draw)
• Hose:
• For an upgraded hose we suggest one of our 50' Kobrajet Hoses available in Black, Gray and Blue
• You CAN run a longer hose but may lose some pressure and it will work the pump harder
• We suggest ordering one of our hoses with Quick Connect Couplers on both sides combined with the pump outlet adapter with plug listed below.
• If you are going to be using a hose reel please look at our product page for that reel to see how we suggest setting it up. Please also consider our complete wall mount packages to make things easier and make sure you get everything you need.
• Quick Connects and Fitting Sizes:
• Pump Inlet: The Clean Garage provides an upgraded Brass inlet adapter with each unit which is much better than the typical plastic ones this unit comes with, so a standard garden hose will connect to it without any other parts needed.
• If you want to convert your inlet to quick connects you will need a Garden Hose QC Plug 24.5002 and Garden Hose QC Coupler 24.0631 . If you want both ends of your inlet hose to quick connect you will need 2 of each.
• Pump Outlet: This unit has the most common size pump outlet M22 14MM Male
• To adapt this to a 3/8" Plug you will need part number 24.5014 (For aftermarket hoses with a 3/8" coupler)
• To adapt this to a 3/8" Coupler you will need part number 24.0448 (For aftermarket hoses with a 3/8" plug)
• Hose and Spray Gun: Remember this unit is shipped without a factory hose or spray gun so you will need to purchase those seperately.
• For the hose we suggest following our guidance above, purchasing one of our Kobrajet hoses with quick connect couplers.
• You can then purchase any of our short spray guns with a 3/8" plug installed on the inlet to connect to your hoses coupler.

Info For Mobile Detailer Setups:

• AR Tri-Plex Pumps must be gravity fed when being fed from a water tank
• The tank should be AT LEAST 12" above the pump
• The tank should be as close to the pump as possible
• The inlet hose diameter should be doubled in size when gravity feeding (1.5")
• Generator Requirements:
• To properly power a commercial pressure washer long term we suggest using the following formula when determining your generator wattage:
• AMPS X VOLTS X 3 = At least 7200 running watts

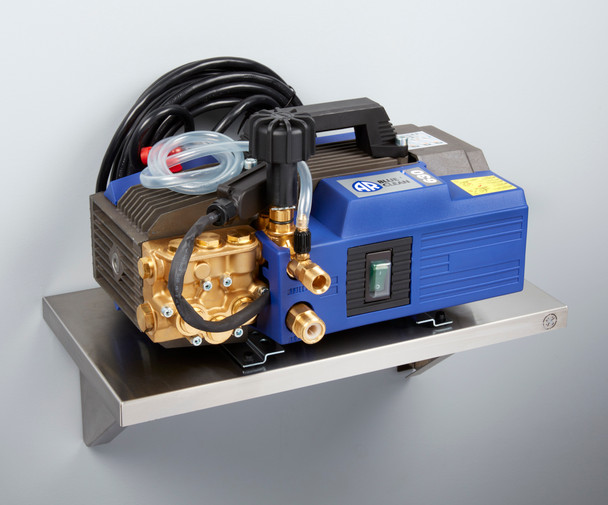

The AR Blue Clean AR630TSS-HOT high-temperature Industrial electric pressure washer with Total Stop System. Factory Installed Hot kit seals and o-rings capable of inlet temp. up to 180º. This pressure cleaner is fitted with AR renowned Triplex Pump with ceramic plungers and double packing industrial seals. Powerful induction motor, gun-wand assembly, thermal protector, pressure adjustment knob, total stop and adjustable detergent suction. A product of Annovi Reverberi S.p.A., Italy, the largest privately owned company of Triplex Plunger Pumps in the world.

• Total Stop System – power to the washer is controlled by the trigger gun
• Hot kit seals and o-rings capable of inlet temp. up to 180º – Factory-installed option. Note: HOT models DO NOT create hot water.
• Induction motor; can produce 6 times the life of a universal motor
• Forged brass pump head for durability
• Large knob for easy pressure adjustment
• Automatic safety valve with low-pressure by-pass
• Split lance for fast sudsing and power cleaning
• Adjustable detergent injection with low-pressure soap
• Thermal switch shuts off when the temperature rises too high
• It is designed to be compact and very portable
• Built-in handle allows for easy movement between jobs
• A safety lock prevents the trigger from accidentally engaging when not in use
• It is equipped with GFCI to shut down power supply in the event of electrical ground failure.

Specifications:

• Pressure: 1,900 PSI
• Max. Volume: 2.1 GPM
• Total Stop System
• 2.0 HP Induction Motor
• 115 Volts, 19 Amps
• Max Temperature: 180° F
• AR Triplex pump with ceramic plungers, connecting rod system
• Adjustable pressure unloader
• Adjustable detergent suction in low pressure
• 3’ Chemical pick up hose with filter
• Motor thermal protector
• Garden hose adapter, filter
• GFCI protected power cord
• Weight 62 Lbs.

Looking for a different AR Unit? We can get them all send us an email sales@clean-garage.com

Warranty Information and Technical Support Contact

• AR600 Series Pressure Washers are warranted to the original purchaser for 1 year
• The pressure washer is warranted to be free from defects in material and workmanship during the specified warranty period
• Please email info@arblueclean.com or Call 1-866-235-5112 for warranty services or any technical questions regarding your AR Blue Clean pressure washer

It is important you understand before purchasing a pressure washer the warranty is facilitated by the the manufacturer, which is in this case is AR North America. Any technical issues, warranty returns or exchanges will be facilitated directly with the manufacturer. The Clean Garage will assist you in making contact with them and anything else within our power to make the process smooth for you should an issue arise. We suggest reviewing the manufacturers full warranty policy before purchase which can be found here:

AR North America Warranty

AR630TSS USER MANUAL
