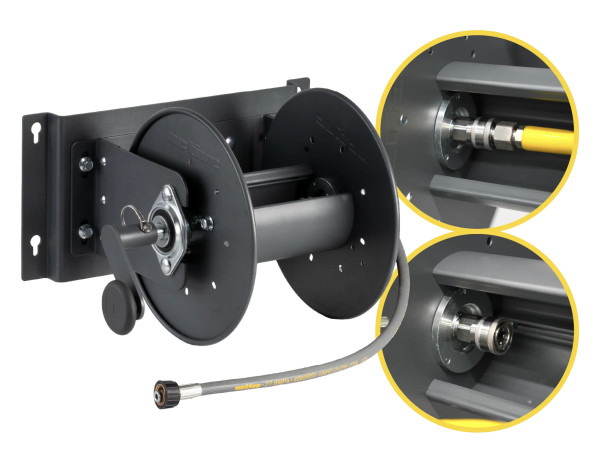

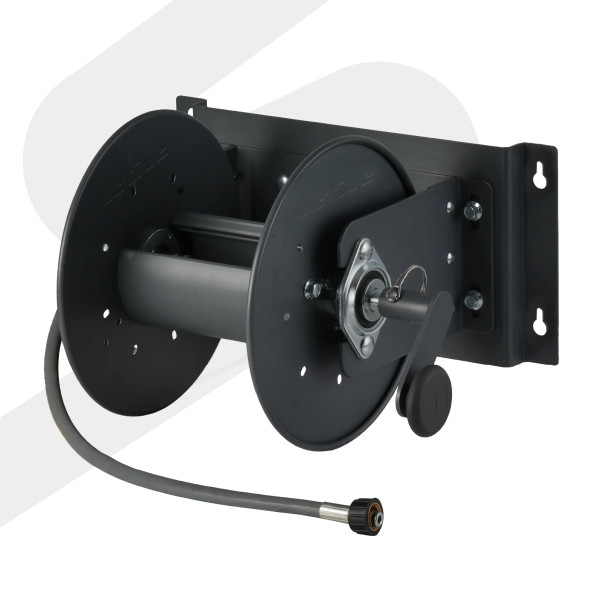

Active Hose Reel M-Series | For Pressure Washer Hose up to 100' *Pre-Order*

New from Active is their Hose Reel only setup. This is NOT the full wall mount kit with a shelf, we have that item listed for sale as well. This is a reel and wall mount bracket only for customers that want to use a shelf like the ones The Clean Garage offers in Stainless Steel or in Black from Poka Premium.

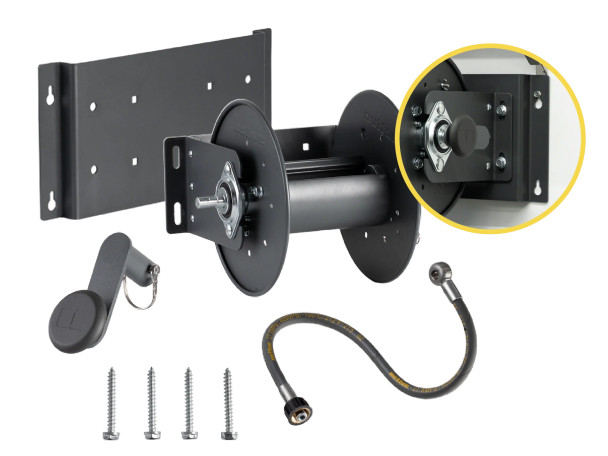

For Pressure Washer Hoses with 3/8” Female QC Adapter, up to 100ft Pressure Washer Hose (3/8” or 5/16” hose). Included 2 ft jumper hose with M22-14mm adapter and 16” stud spacing mounting bracket.

Please make sure you review the details we have listed below on this reel and the connection sizes. It was designed to work best with Active brand pressure washers and hoses but can also be adapted to work with others if you follow our guidance and sizing.

What Pressure Washers Will It Work With:

The included 2' jumper hose will work with pressure washers with an M22 14mm pump outlet. It was designed to thread directly to the pump outlet without using quick connects. Active designed the jumper hose to connect directly to their 2.0, 2.3 and upcoming 3.0 models. It will also work with other pressure washers, you must verify that that your pressure washer has an M22 14mm pump outlet. You will also need to make sure your pump is mounted close to the reel since the jumper hose is only 2' long.

What Hoses Will It Work With:

Active designed this reel to work with their hoses, which we stock, that have a 3/8" quick connect plug on the inlet.

The connection point on the reel is a 3/8" coupler.

The reel will work with any pressure washer hose up to 100' in 1/4" 5/16" or 3/8" that can adapted to a 3/8" plug on the inlet.

If you are buying on of our 3/8" Kobrajet hoses or have one already you will want to order one of these plugs for the inlet:

MTM Quick Connect Plug 3/8" Female

Prima 3/8" Female Stainless Steel Quick Connect Plug

If you are ordering a new hose from us we would suggest getting it with a coupler on one end and then ordering one of the plugs above for the other end.

Factory Information From Active:

The hose reel valves have a max rating of 3000 peak pressure, 2100 PSI operating pressure, and 3.5 GPM max flow rate, within limits for most industrial automotive pressure washers.

Warranty Information

View and Register Online at www.activeproducts.com
